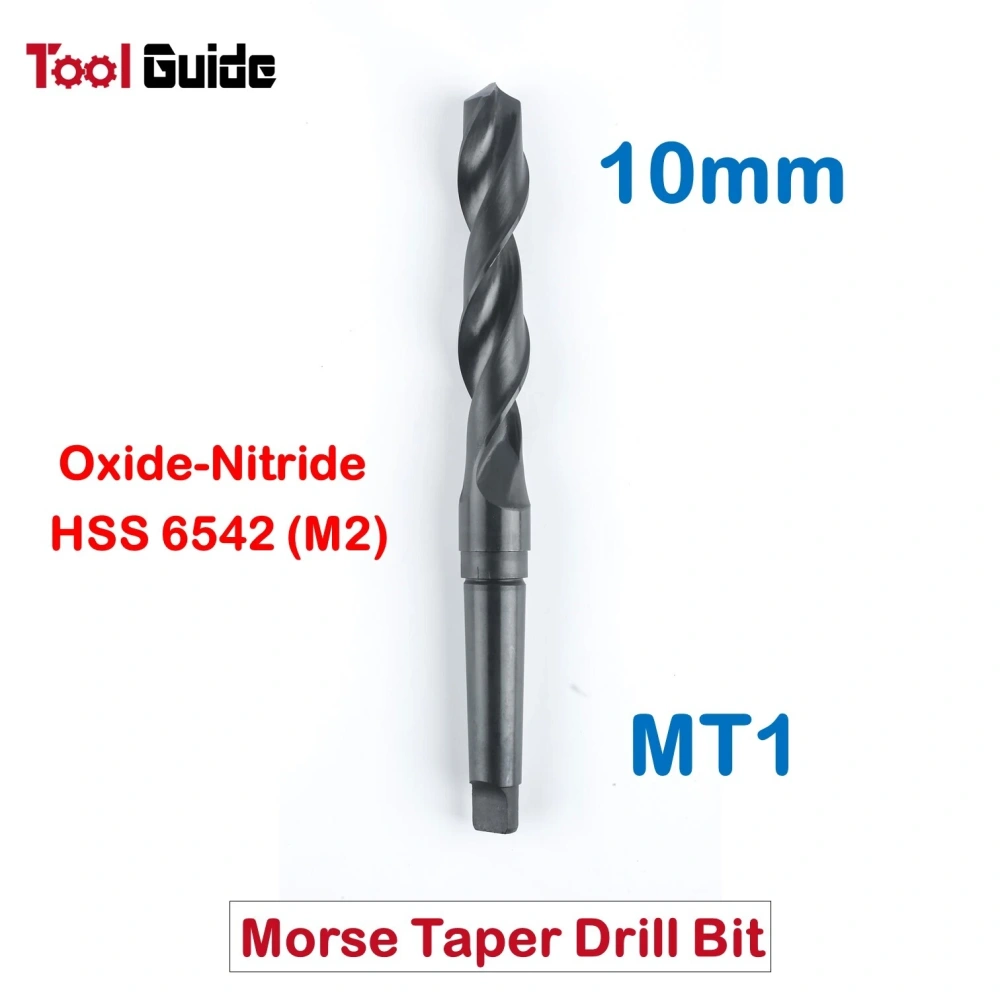

Quality 10mm-35mm HSS Morse Taper #1-4 Drill Bit M2 High Speed Steel MT1-4 Shank

Description
配送保障

THIS PRODUCT MEETS ISO9001:2000 STANDARD
Professional Industrial Quality for Drilling and Milling Machine
M2 High Speed Steel 6542,
Black Nitride-Oxide finished
Hardness HRC 65
Heat Resistance
Corrosion Resistance
Fatigue Resistance
Wear Resistance
High Toughness
High Grindabllity
High Hot Hardness
Fully ground and heat-treated

SPECIFICATIONS

Diameter (mm)	L1 (mm)	L2 (mm)	Morse Taper No.
12	180	100	MT1
12.5	180	100	MT1
13	185	100	MT1
13.5	185	105	MT1
14	185	105	MT1
14.5	213	113	MT2
15	213	113	MT2
15.5	220	117	MT2
16	213	117	MT2
16.5	220	117	MT2
17	225	125	MT2
17.5	225	125	MT2
18	230	130	MT2
18.5	230	130	MT2
19	241	145	MT2
19.5	235	135	MT2
20	235	135	MT2
20.5	235	135	MT2
21	245	148	MT2
21.5	245	148	MT2
22	240	145	MT2
22.5	250	153	MT2
23	253	155	MT2
23.5	283	160	MT3
24	283	160	MT3
24.5	283	160	MT3
25	283	160	MT3
25.5	283	160	MT3
26	285	163	MT3
26.5	285	163	MT3
27	290	165	MT3
27.5	293	165	MT3
28	293	170	MT3
28.5	293	165	MT3
29	300	175	MT3
29.5	300	170	MT3
30	300	175	MT3
30.5	305	180	MT3
31	305	180	MT3
31.5	310	182	MT3
32	335	185	MT4
35	340	190	MT4
